Mosaico

Mosaico is a unique (free and open source ❤️) platform that allows users and developers to create, share, and display custom widgets on a LED matrix. This ecosystem is composed of various applications working together to bring vibrant, customizable content to your Raspberry Pi-driven LED matrix.

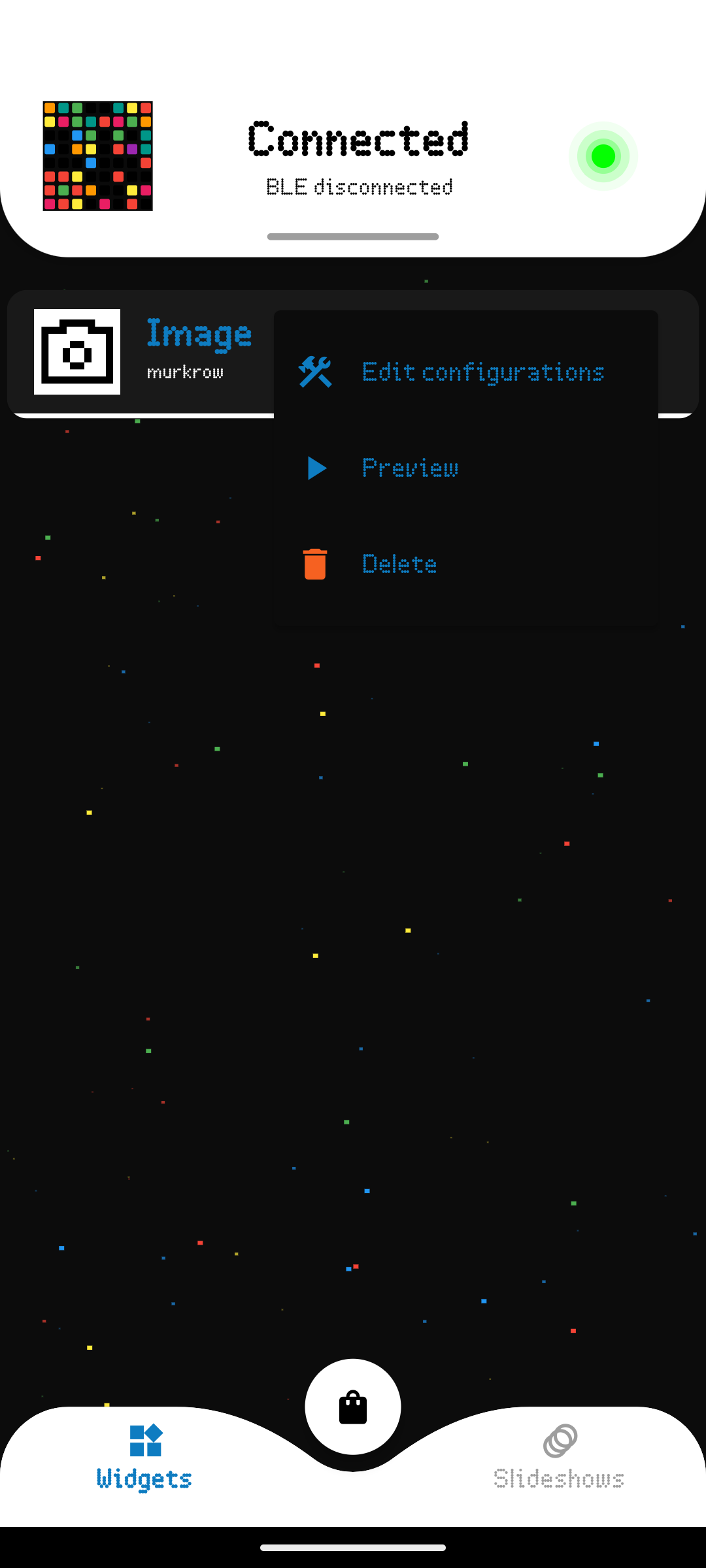

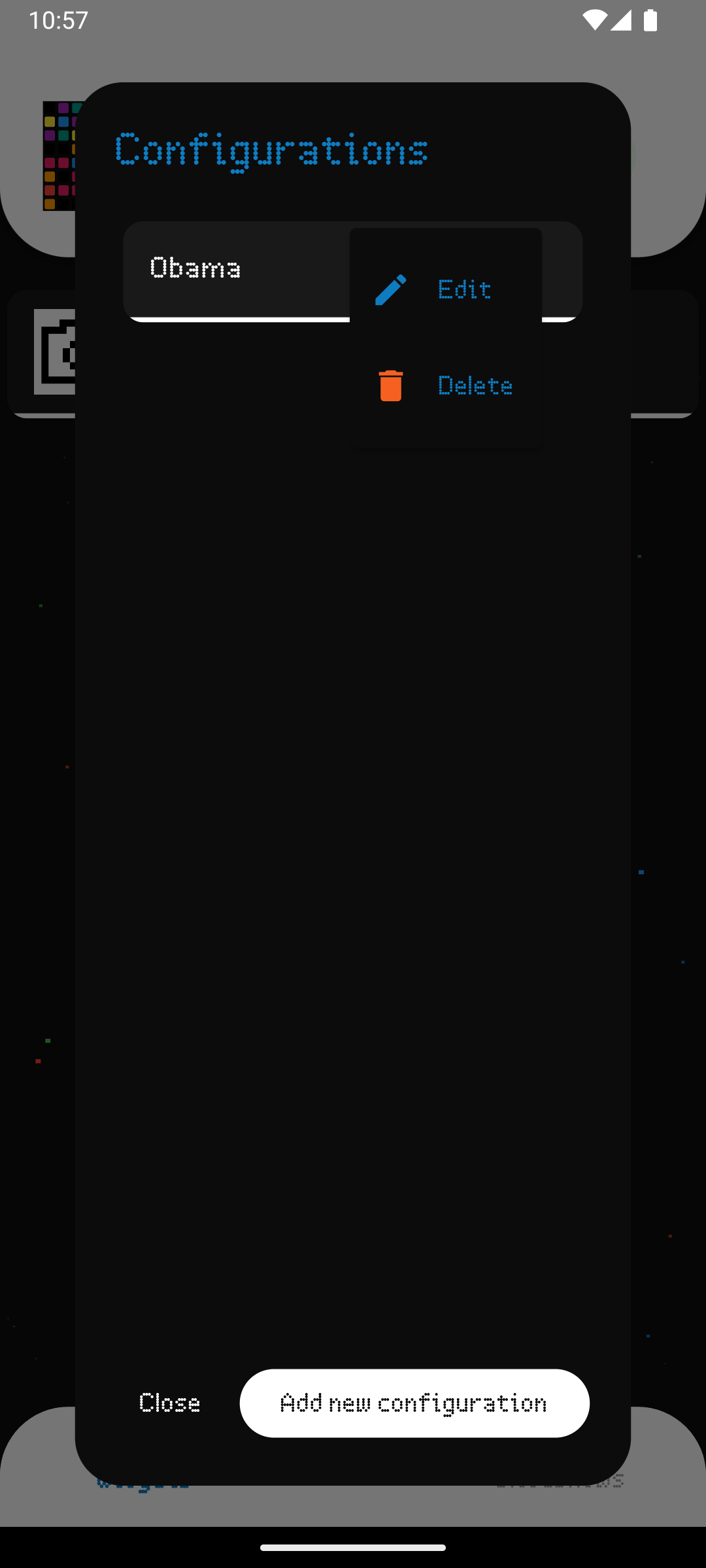

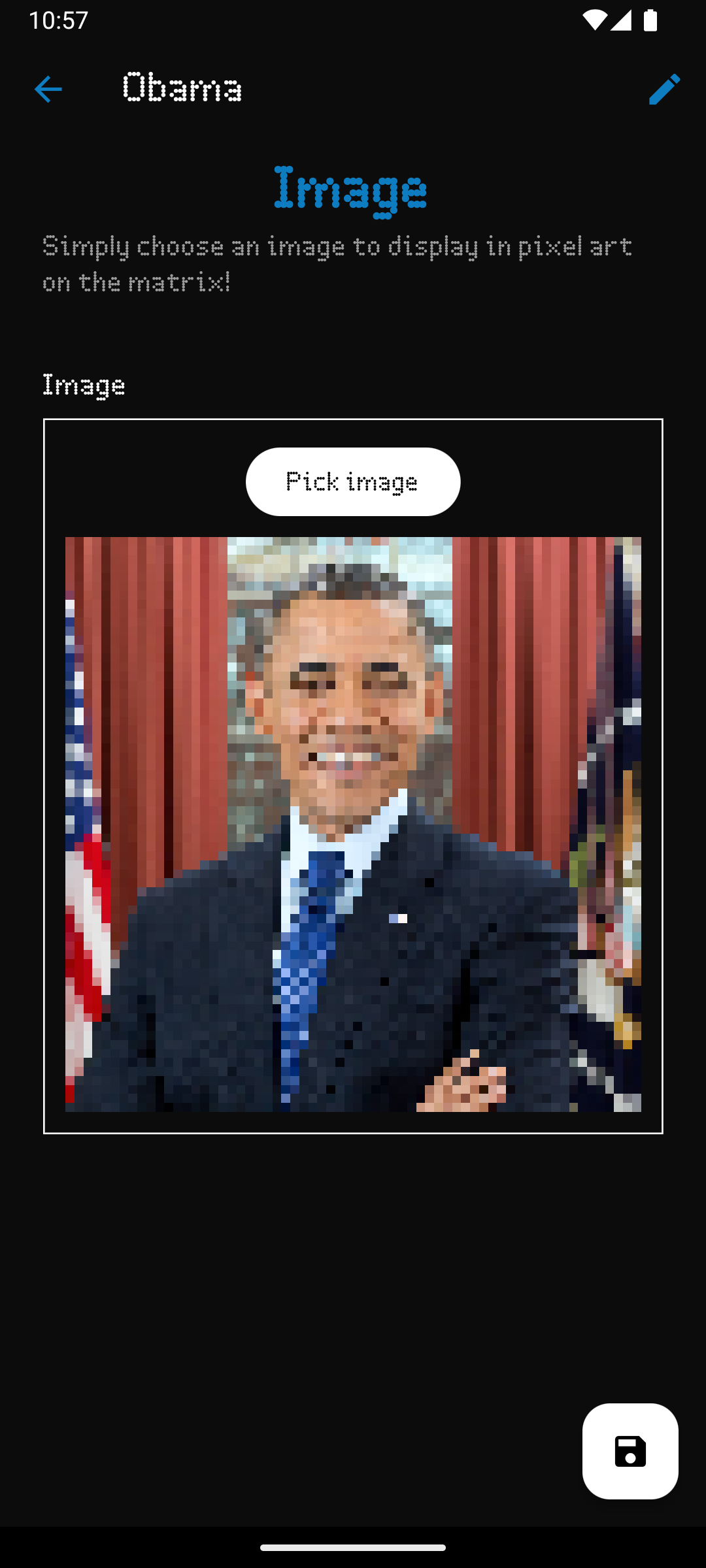

edit_widgets edit_configurations config_page
obama_matrix

Introduction

Mosaico is designed to empower both users and developers by providing an open platform where custom Python widgets can be created and displayed on a LED matrix. Whether you want to show the time, weather, or your latest grocery list, Mosaico makes it easy to develop and deploy your ideas.

Some examples of widgets

  • Display the current time and date.
  • Show the weather forecast for your location.
  • Create a shopping list widget.
  • Upload a custom image and display it as pixel art.
  • Write custom text messages or quotes.
  • Create animations or visual effects.
  • Anything else you can imagine!

Architecture Overview

The Mosaico Ecosystem consists of:

  • Raspberry Pi Software: Written in C++ and Python, this software drives the LED matrix and manages the execution of widgets.
  • Mobile App: Developed with Flutter, connects to the Raspberry Pi via BLE and COAP, allowing users to manage widgets, browse the App Store, create slideshows, and configure network settings.
  • App Store: Developed with Laravel, a web platform where developers can submit their widgets for others to use.
  • IDE: A (dummy) desktop application that allows developers to create and test widgets locally. It is meant to be a lightweight tool to help developers get started with widget development.
  • Simulator: (part of the software) An X11 window that simulates the LED matrix for development purposes. A web-based simulator is in the works and will allow developers to test their widgets without a physical matrix in the easiest way possible.
  • Shared library: A Dart package that contains common code shared between the mobile app and the IDE.

All these project are available on the organization GitHub page.
