Mobile App
The mobile app interfaces with the Raspberry Pi to:
- Browse and install widgets from the app store.
- Configure and manage installed widgets.
- Create and manage slideshows.
- Check device status
- Control device

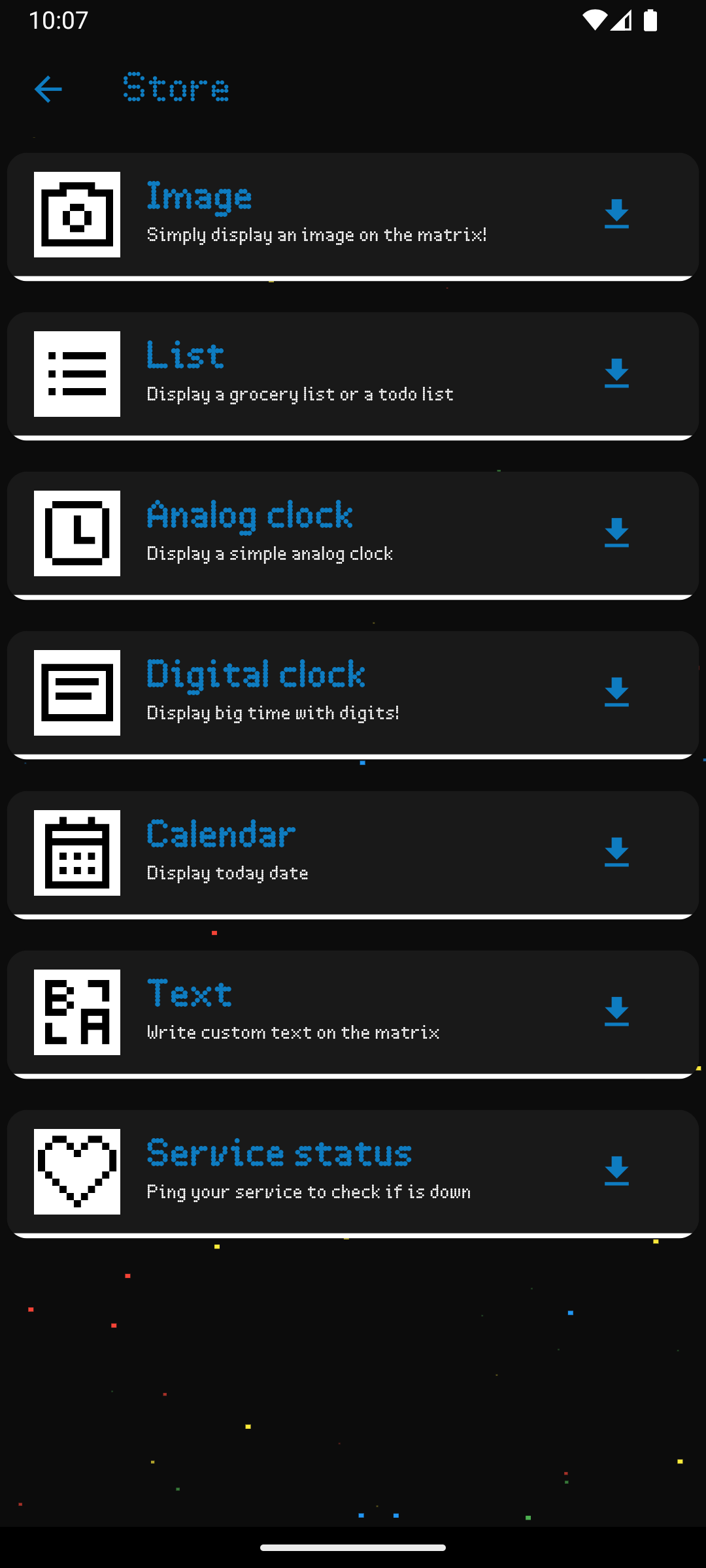

App Store
The store is the place to find and fall in love with new widgets. Developers can submit their widgets, upload a custom icon, provide a tagline and a rich markdown description. The widget itself is hosted on a git repo so that it can be updated and maintained by the developer and easy to retrieve by the Raspberry Pi.

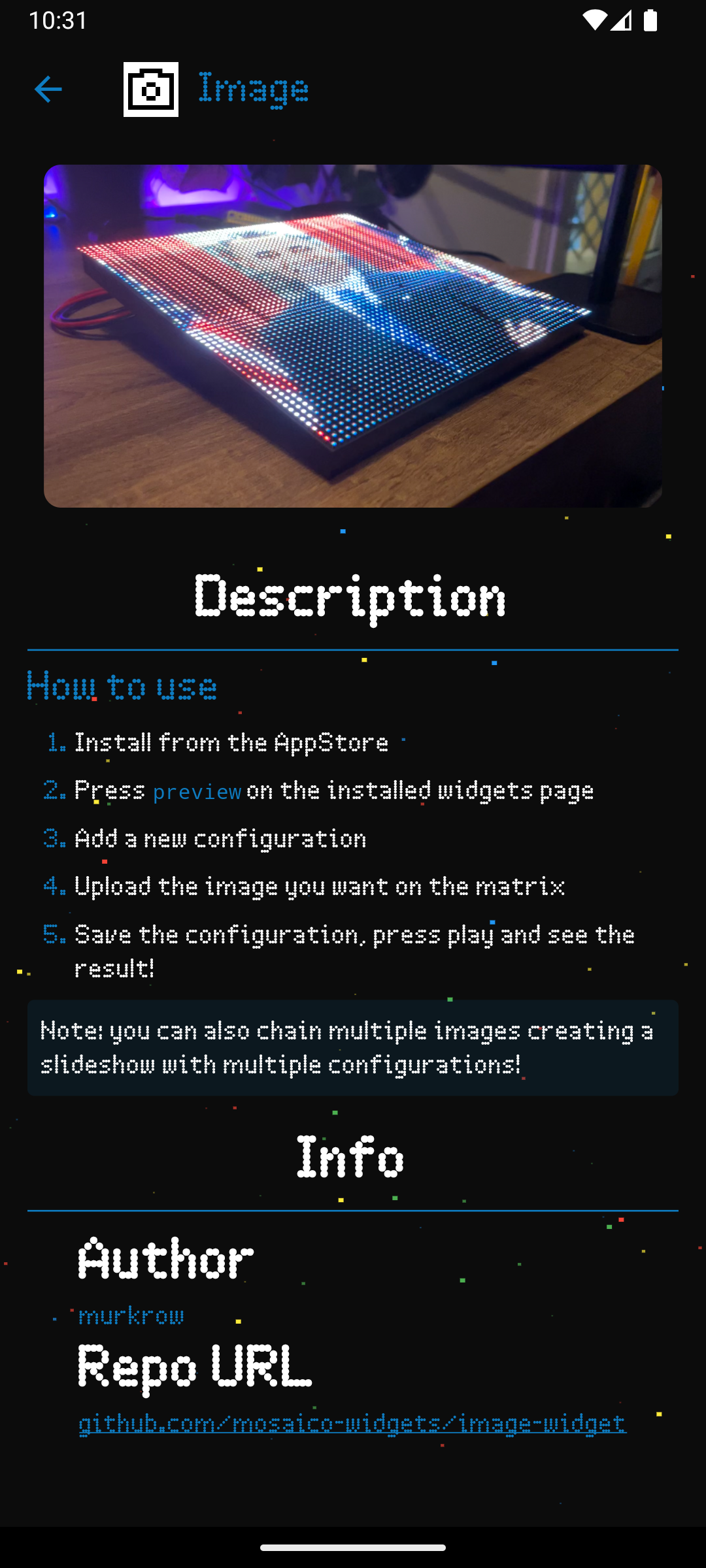

Once clicked on a widget, the user can see the widget details, by clicking on the installation button, the Raspberry Pi will proceed to git clone the widget and configure it for us. Once the widget has been installed it will be ready in the widgets tab.
Installed widgets
This is the first screen displayed when the app is launched. From here, the user can see, configure and manage the widgets installed on the Raspberry Pi.

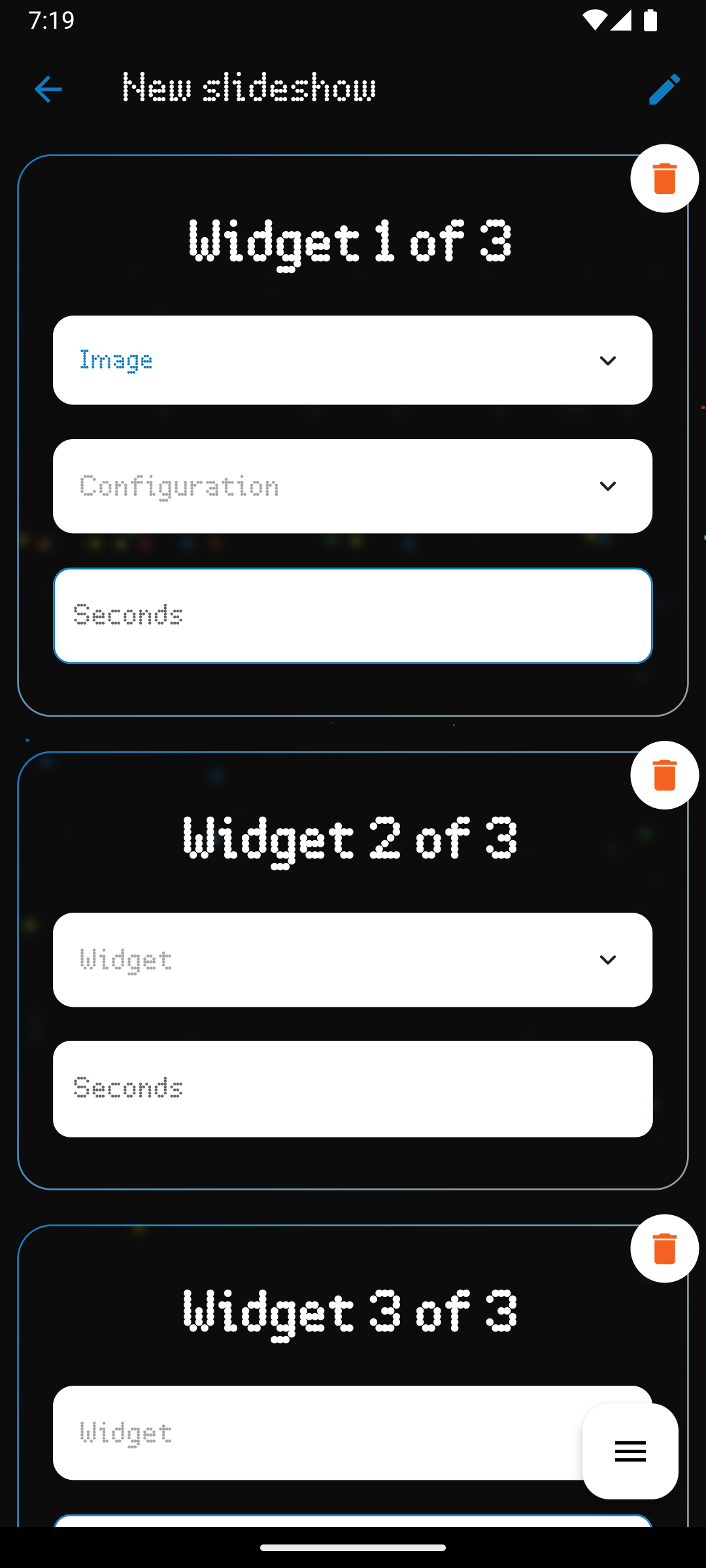

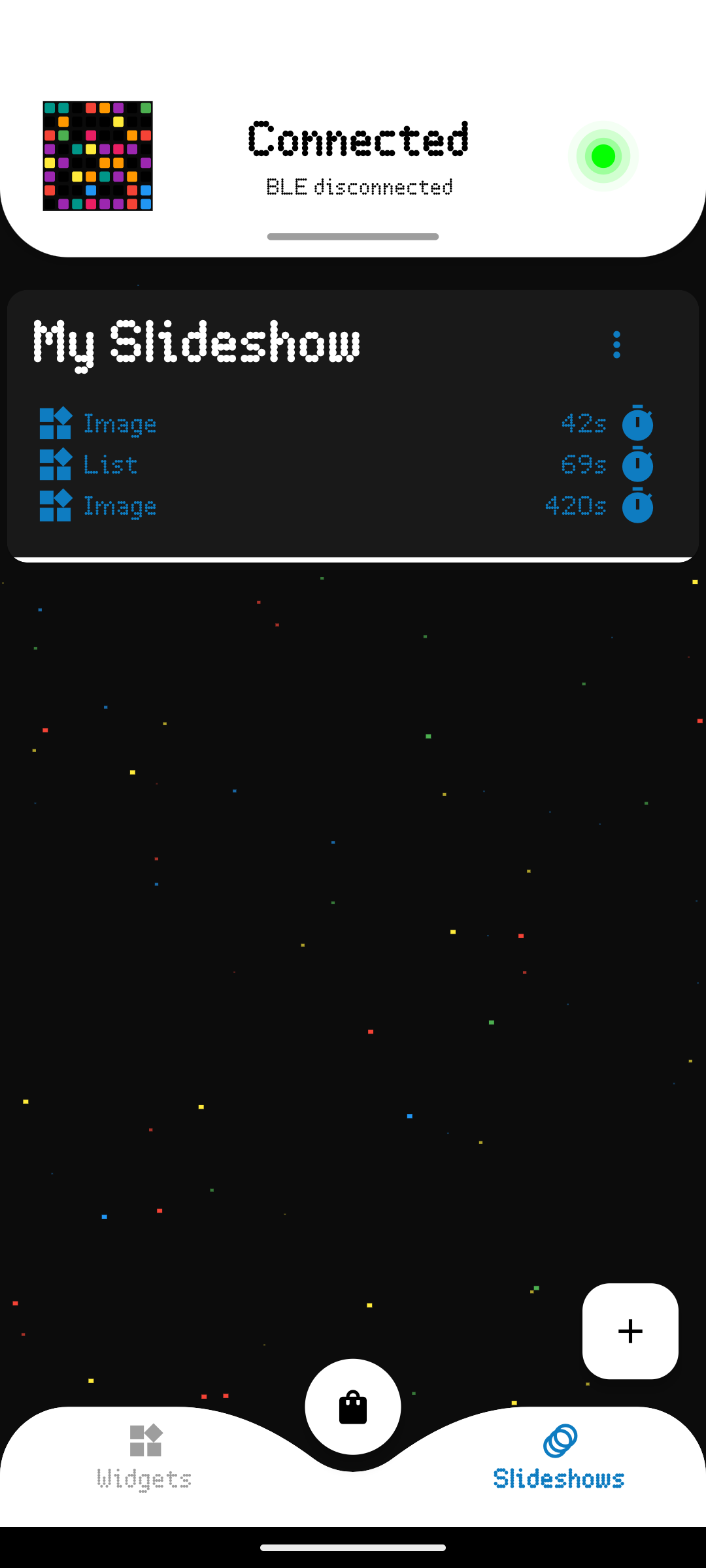

Slideshows

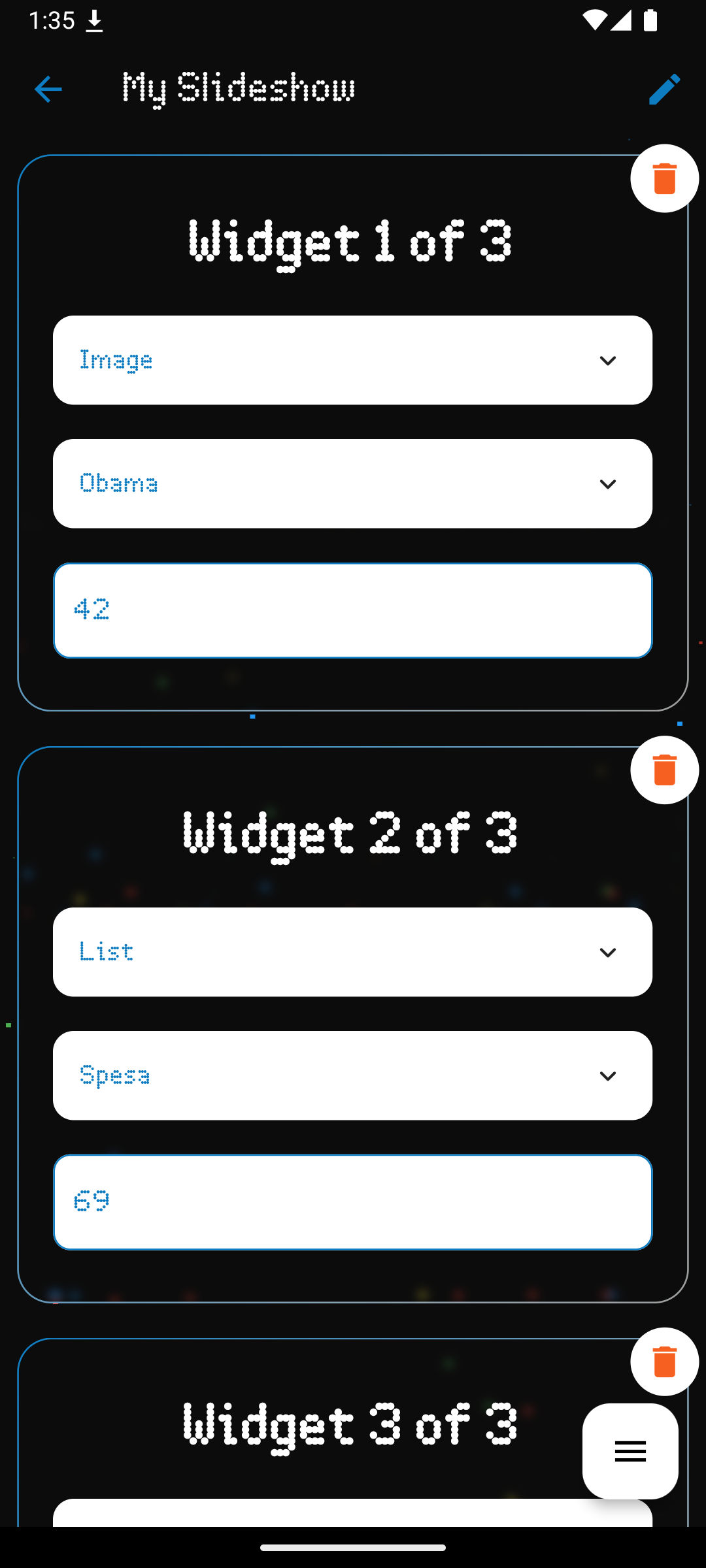

The slideshow feature allows the user to create a sequence of widgets that will be displayed in a loop. The user can define the duration of each widget in seconds.
Slideshows items are easily draggable and can be reordered at will. It is always possible to add, remove or edit the widgets in the slideshow.

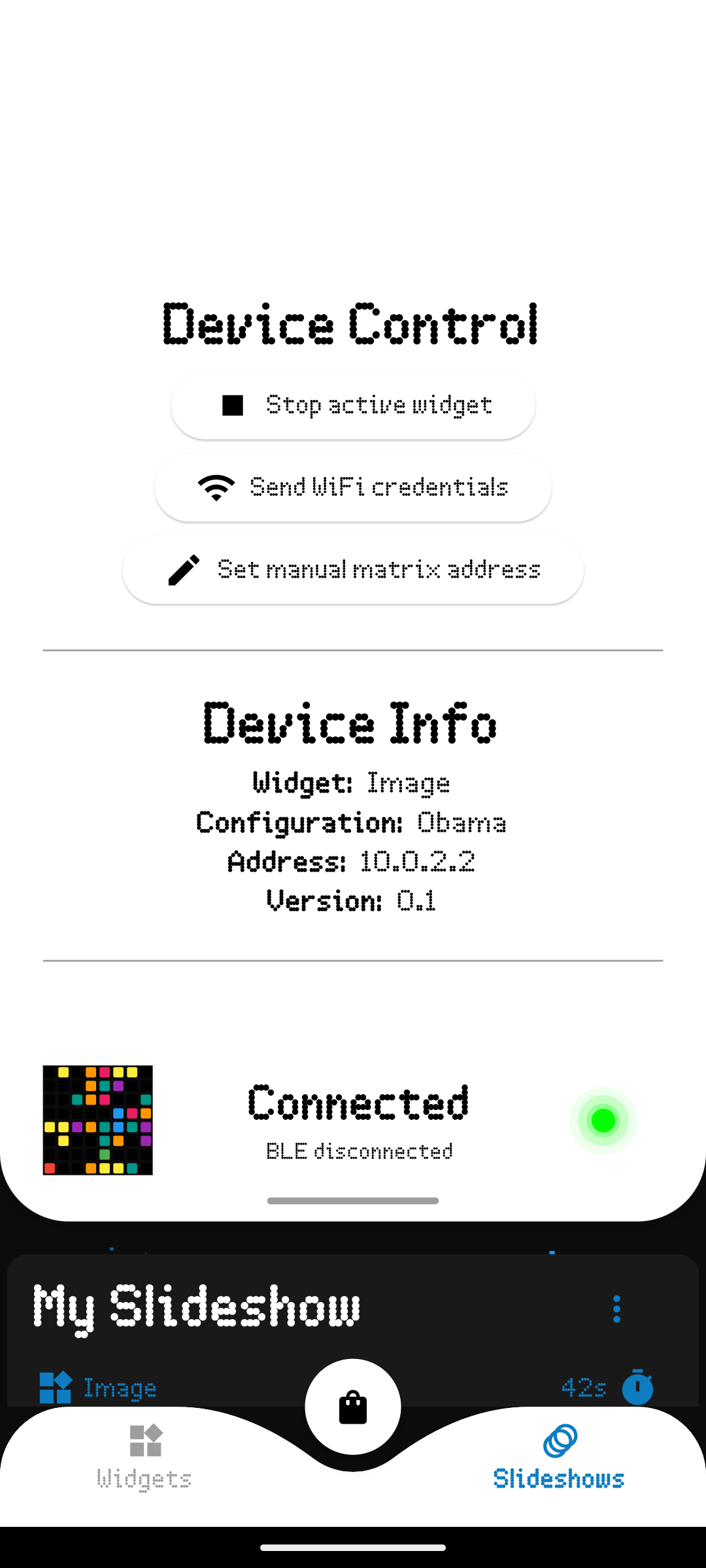

Device status
When in the home screen, the status of the connection to the Raspberry Pi is always displayed. In particular, we consider the app connected
to the device when a COAP connection can be established, a warning will be displayed if BLE is not connected.

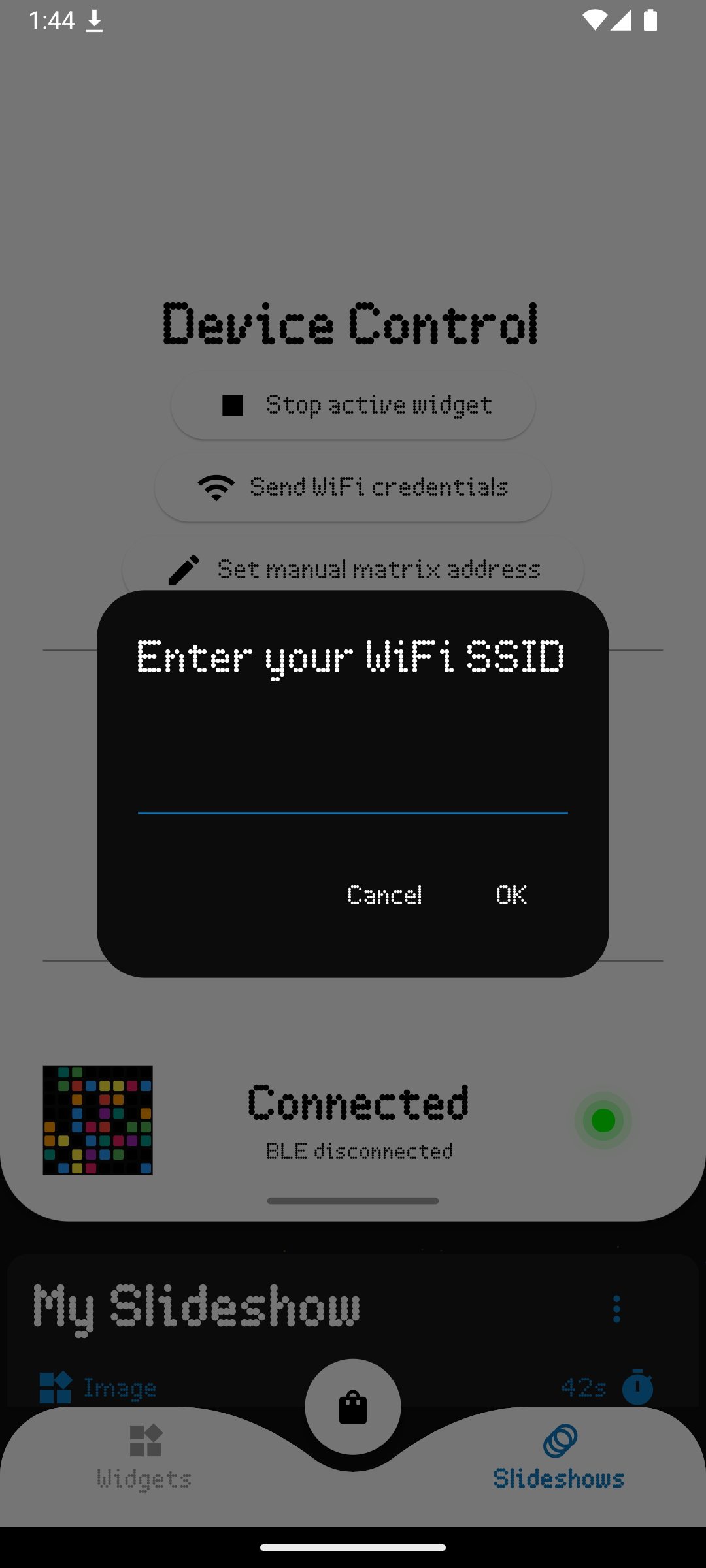

All the major features of the app are available only when the app is connected to the Raspberry Pi via COAP while BLE is only used to find the matrix on the local network (discovery) or to send network credentials in case the matrix is not connected to the network yet.
By pulling down the sliding panel we can obtain more information about the device, such as the IP address, the firmware version, and the current widget/configuration being displayed.
